無鉚連接系統
 |

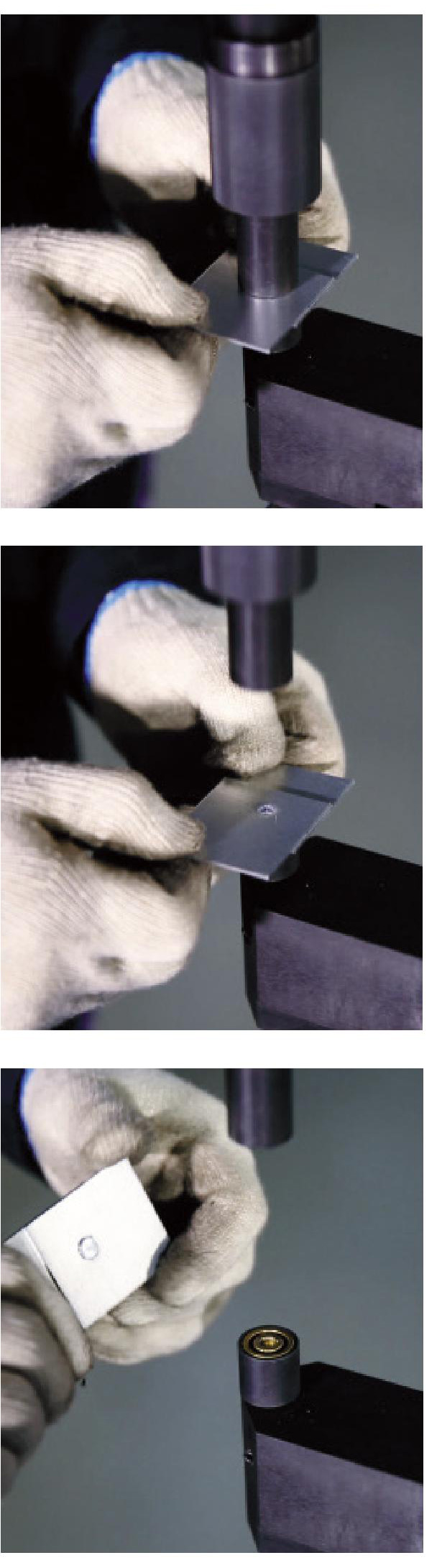

您還在做焊接或鉚接嗎？ 省錢 – 僅需1套沖頭和下模就可以完成零件的連接！ LAG的BTM無鉚連接系統通過簡單的沖壓過程就能讓二塊板 材“冷焊”在一起，并且無需任何焊材或購買緊固件。通過 這種特殊的沖鉚工藝使二塊板料拉伸和成型后形成倒鉤并緊 密的“粘聯””在一起，加工成本大大降低。無鉚連接工藝 對于鍍鋅、彩涂板等帶表面涂層的板材相比傳統焊接工藝具 有無火花及煙霧污染，板無表面損傷的明顯優勢! BTM 的壓鉚解決方案的一些好處： ? LAG 無鉚連接系統具有極穩定的抗拉強度 ? LAG 無鉚連接可做無損傷檢測 ? LAG 無鉚連接效率高（一個工件通?？梢栽谝幻胫型瓿桑?/span> Are you still Welding or Riveting? SAVE MONEY - Join your parts with a Punch and Die! LAG and BTM related clinching tools join sheet metal without the expense of welding or purchased fasteners by simply joining the part’s own material! Assembly cost is significantly reduced by drawing and forming the part material into an interlock. Join galvanized, pre-painted, or even dissimilar metal combinations using an environmentally friendly process that does not produce sparks, harmful fumes or damaging heat! Some Benefits of BTM’s Clinching Solutions: ?LAG Clinch Joints system are consistently strong ?LAG Clinch Joints are Non-destructively checked ?LAG Clinching is fast (a joint can typically be created in under one second).  |
LAG 無鉚連接 BTM 工具訂購及要求
LAG Joint BTM Tooling Set order specification Request
1. 請?zhí)峁┬柽B接的板材的種類、厚度，典型工件圖，鑒于不同工廠的板料有一定差異，請?zhí)峁┳钌?0件樣件 給我們以便我們按照貴司的材料選擇最佳的BTM工具型號 一次性購買我們LAG無鉚連接BTM工具組合，包括：BTM沖模、凹模和沖模座及凹模座
1. Please specify your joint parts material, drawing and supply min 10 PCS sample to LAG for define BTM joint tooling.

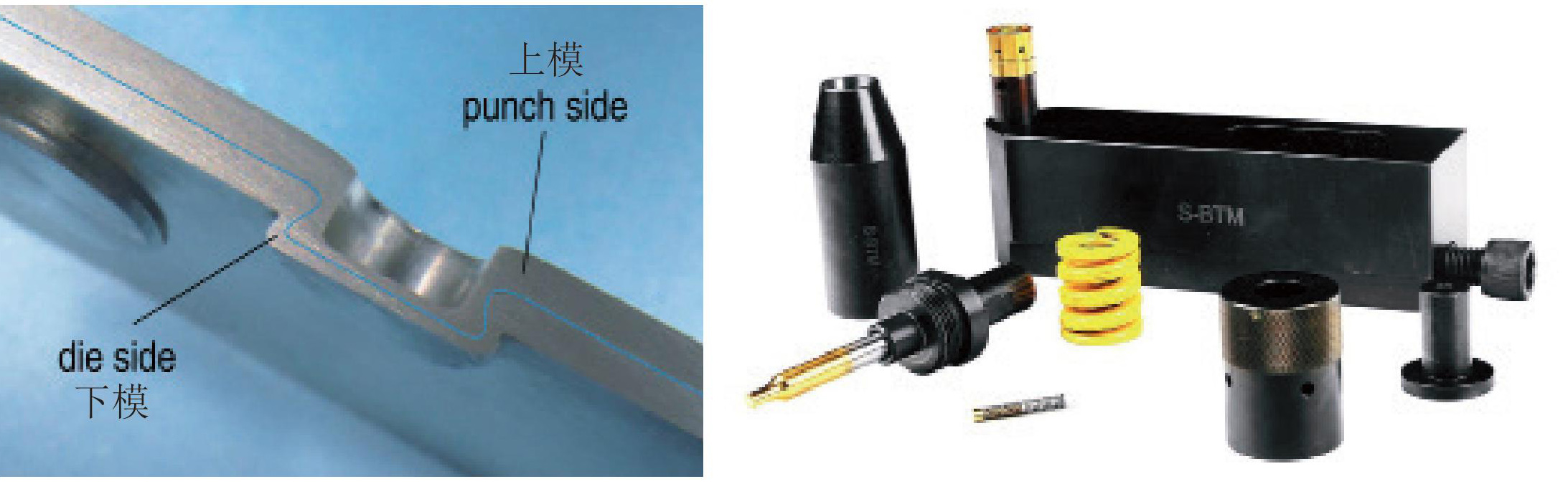

A one time purchase of BTM Punch,die and punch/die holder is included for LAG Joint BTM Tooling Set
BTM無鉚連接工具適用于厚度0.6mm-2.5mm碳鋼及不銹鋼
Self clinch mechanical joint tooling set for mild steel sheet thickness from 0,6 mm to 2,5 mm, for Stainless steel sheet thickness on request
|
JOONT TOOLING |
PART NUMBER |
SHEET MATERIAL |
STRENGTHEN 抗拉強度
|
THINKNESS 厚度 |
|
PUNCH 沖模 |
S-BTM182 |
MS 口 SS 口 AL 口 |
|
|
|
DIE 凹模 |
S-BTM183 |
MS 口 SS 口 AL 口 |
|
|
|
PUNCH/DIE HOLDDER SET 沖凹模座組件 |
S-BTM181 |
|
|
|
2.最小邊距要求
Please specify LAG Joint Minium Distance Request
